AVAILABLE ON ORDER: Hyundai Reefer Thermotech 53′ 3 Axles with barn doors, triaxle with 72” spread. Galvanized approach plate and crossmembers.

Information Request

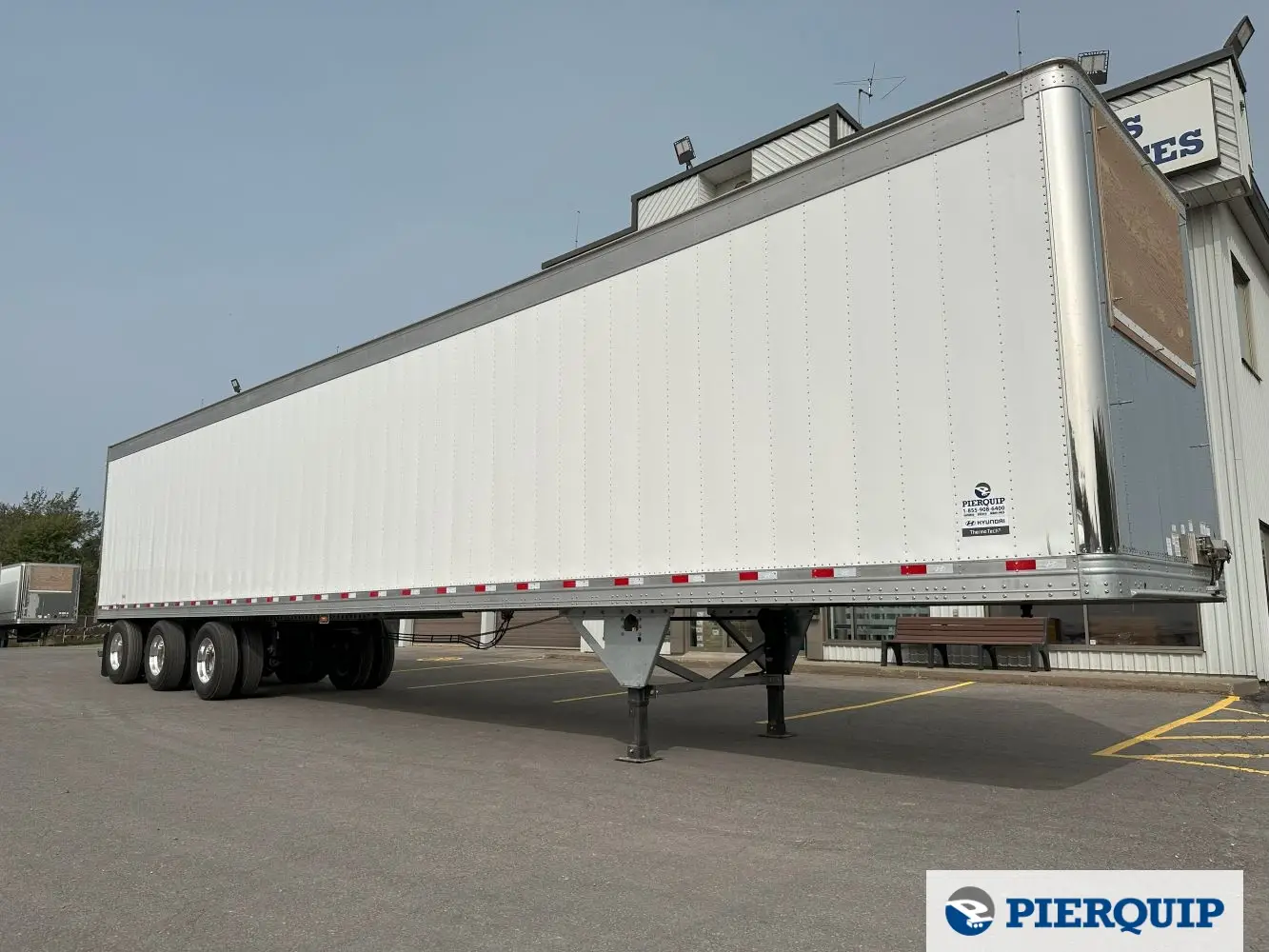

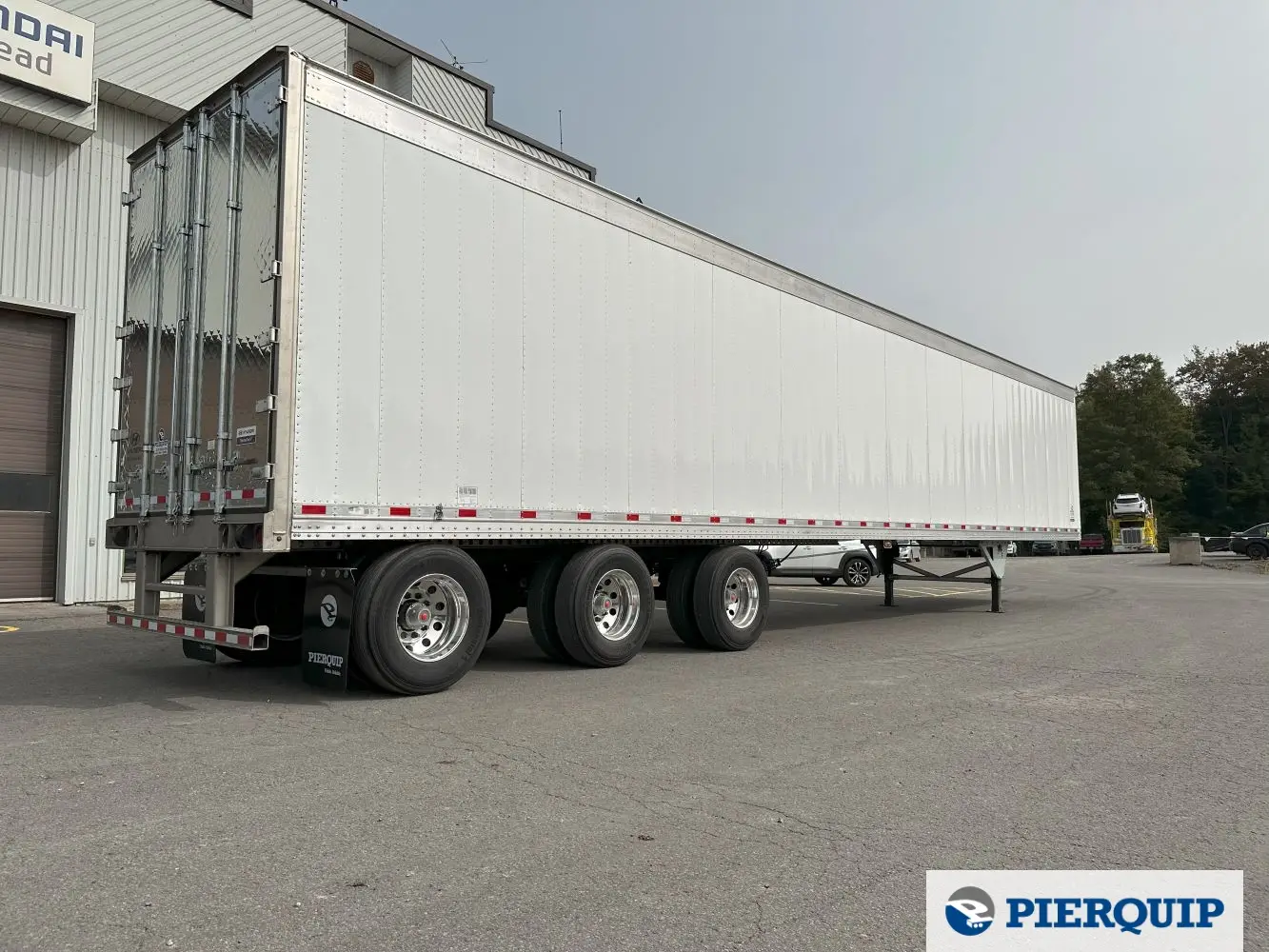

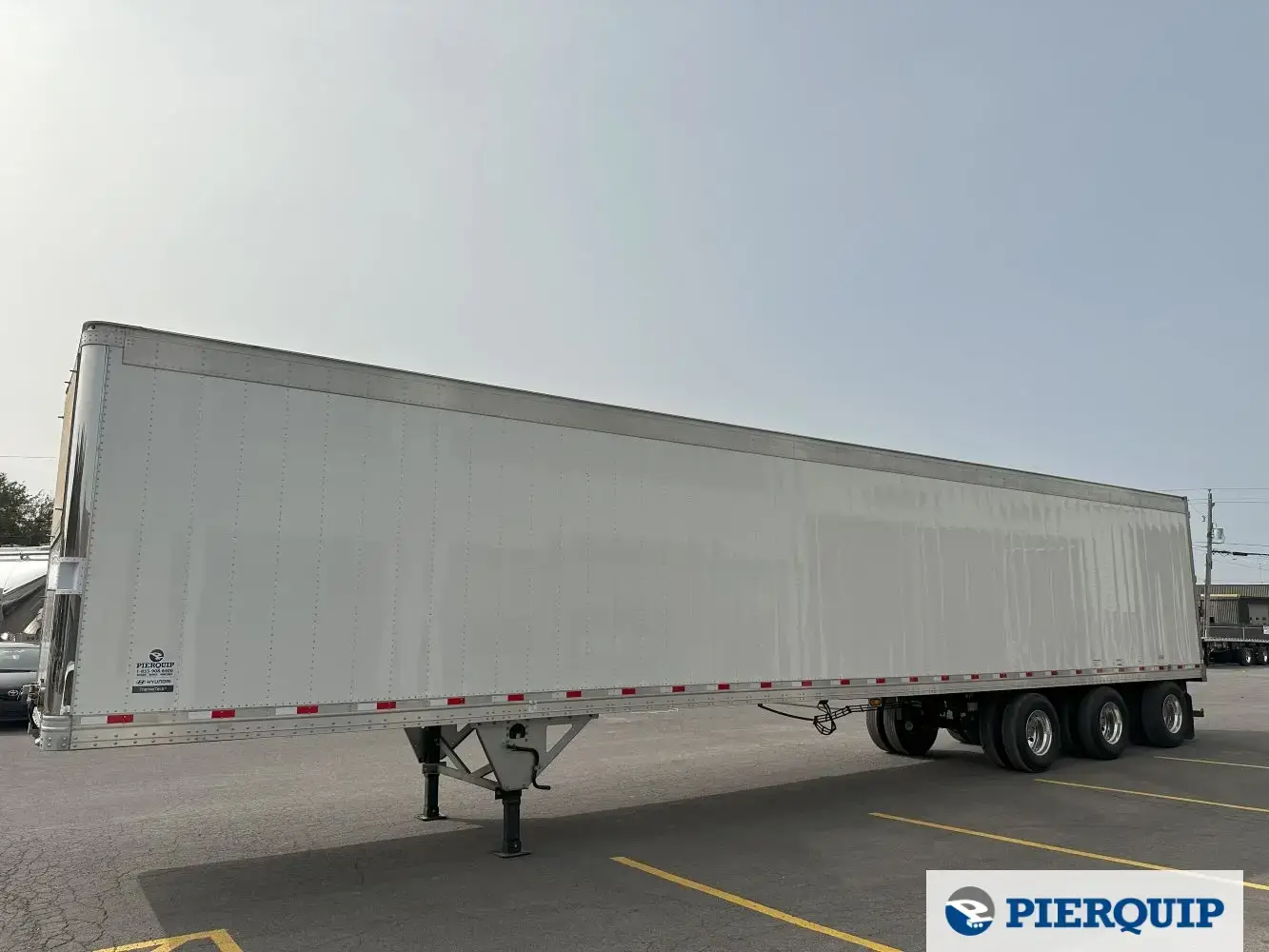

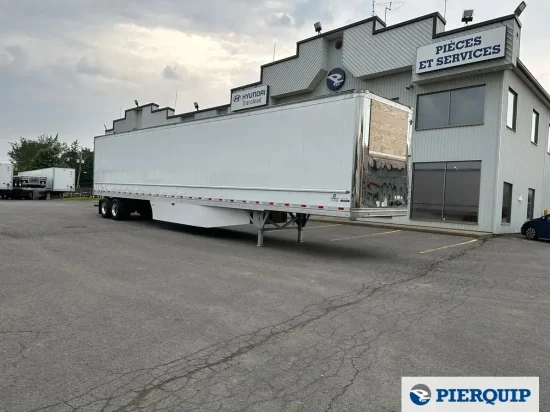

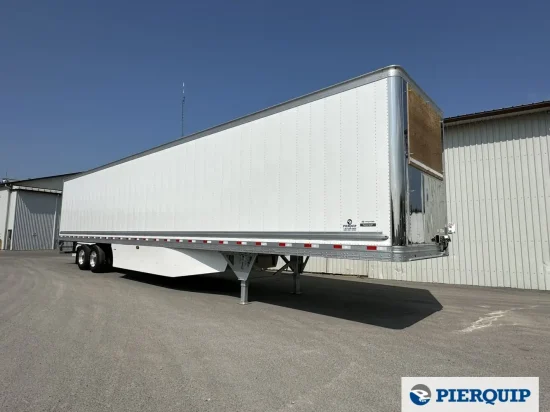

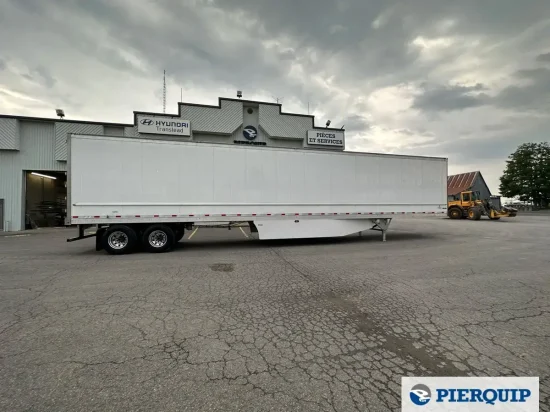

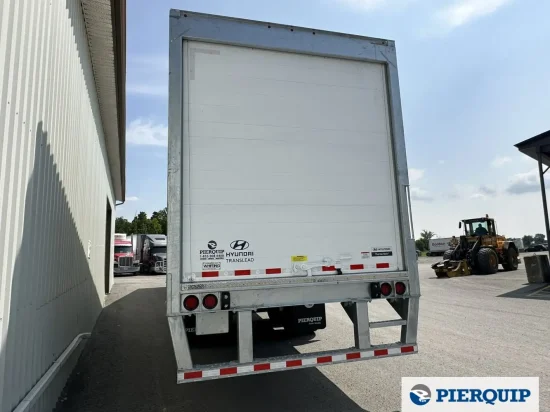

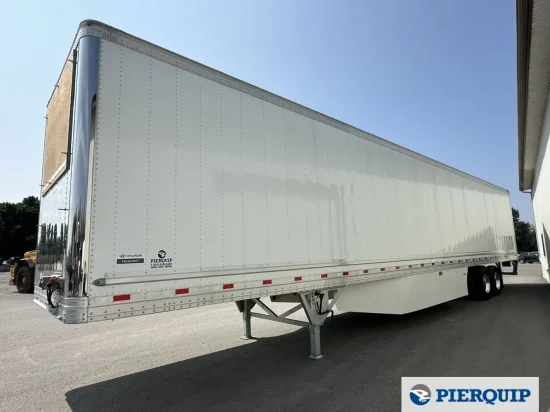

2026 HYUNDAI Refrigerated Van Thermotech 53′ Tridem Swing Doors

Model: HTTF

Stock number: 485002

Year 2026
Number of Axles 3
Length 53'
Availability On order
Condition New

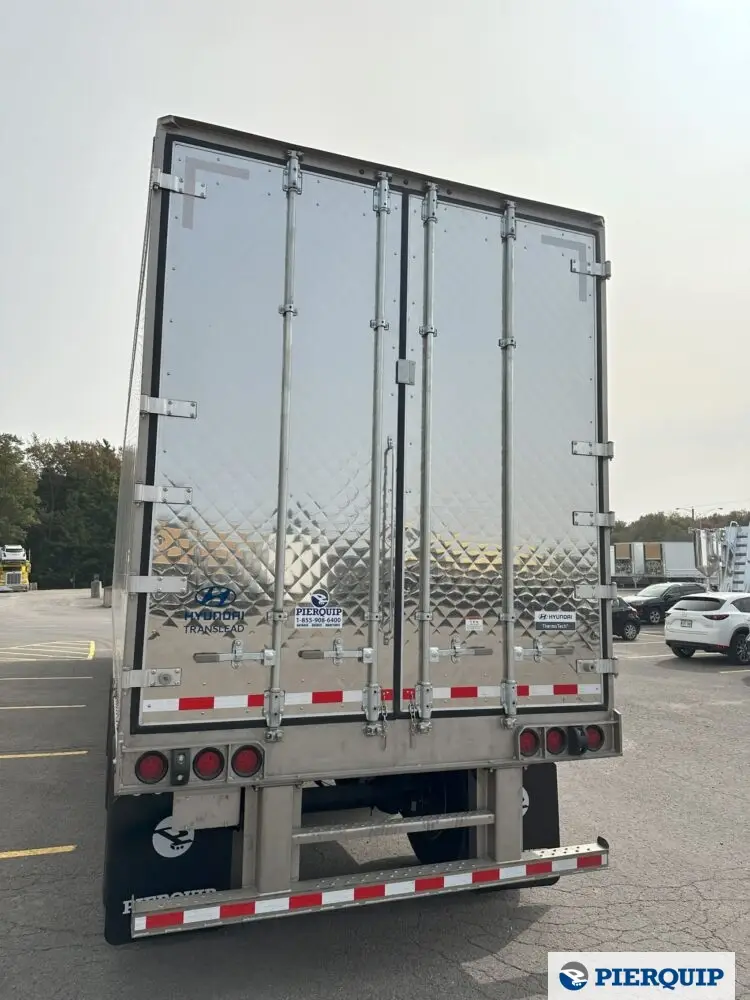

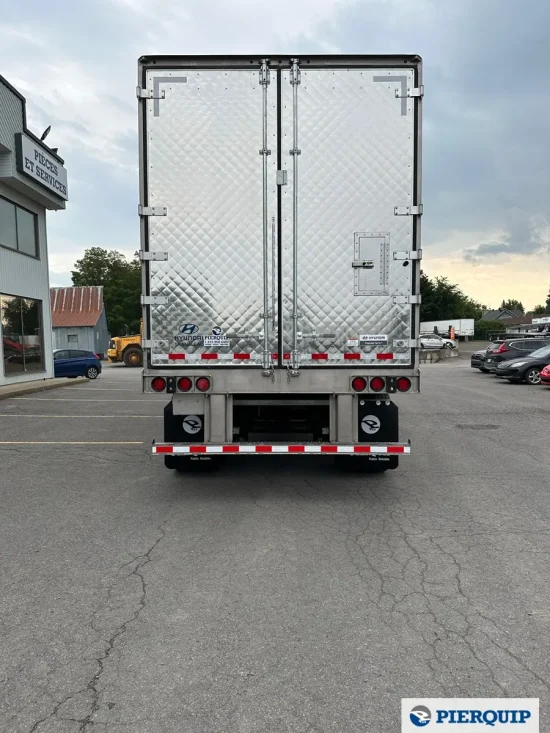

Rear DoorsSwing Door

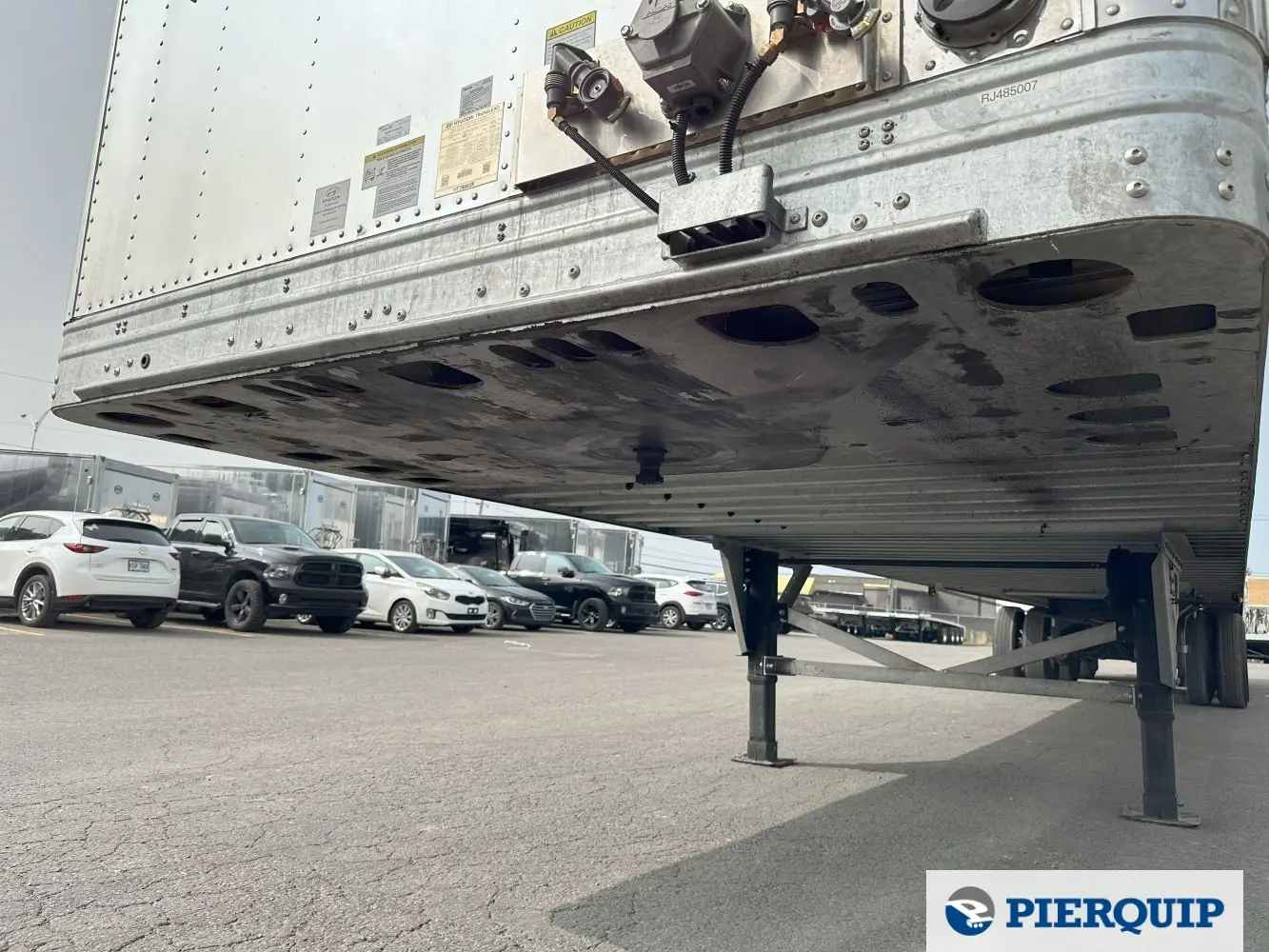

Upper PlateGalvanized 3/8''
Scuff44'' Extruded Aluminum
Landing gearSAF Holland Mark-V
GVWR (Load Capacity)80 000 lbs

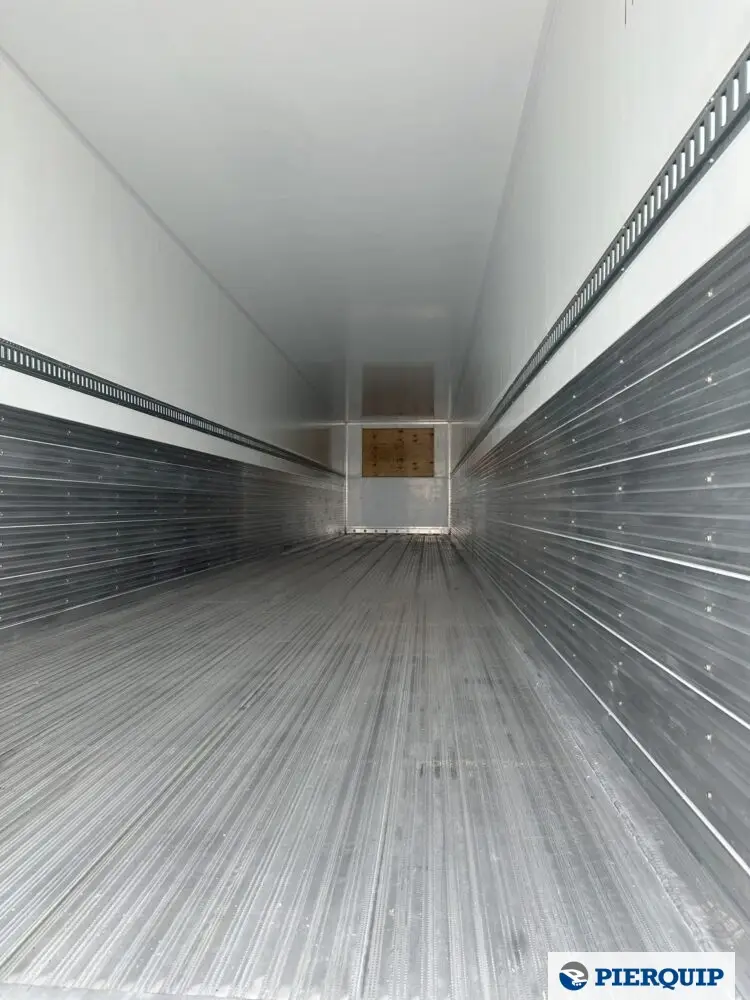

Floor TypeAluminum Flat Floor
Axles Spread72''
Axles TypeSliding Tridem Axle Bogie
Width102"
Inside Length52'
Inside Width97"
Inside Height105''
Crossmembers Spread8'' over landing gear and running gear, 10'' in bay area and 12'' from upper coupler to landing gear
Fifth Wheel Height47"
King Pin Distance36"
Suspension PrimaryHendrickson Vantraxx HKANT69K23
Primary Tires11R22.5 Continental HT3
WheelAluminium
Tire Inflation SystemN/A
BearingParallel Spindle (same inner and outer)
ABS4S2M Wabco ABS System
MudflapOn suspension frame
Aero Dynamic SkirtN/A
Suspension DumpAuto dump valve
Roof0,032'' One piece Corrugated Aluminum
Roof BowAluminum 24'' center with 12'' centers over support gear
Rub RailN/A
Front Wall Exterior0,035'' Stainless steel
Door Hinge5 per door
Door HoldbackLash type with Chain
Fruit Door (Vent Door)N/A
Rear BumperStainless bolted bumper
Treshold Plate77'' dock board guides
Side Wall0,05" Aluminum prepainted white
Scuff avantHeavy Duty 1/2'' aluminum angle pallet stop welded to floor
Front Scuff2" Polyurethane
Roof Insulation2" Polyurethane
Side Insulation2" Polyurethane
Doors Insulation3" Polyurethane
Doors Insulation4" Polyurethane
Load ScaleN/A
ElectricityPhillips Harness
Light SideN/A
Ligth Back3 - 3 Trucklite LED in Grommet
Document HolderPHILLIPS 16-802
ColorWhite
