Description

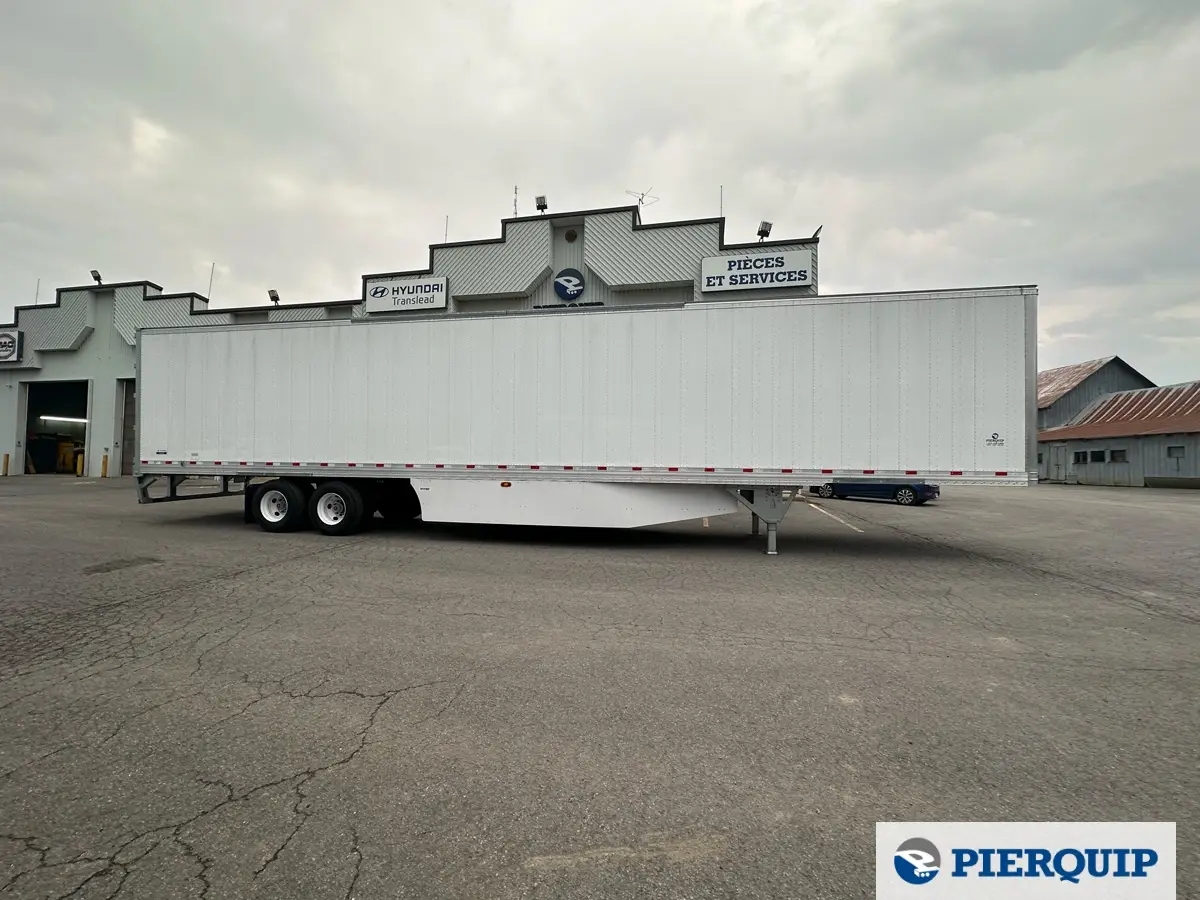

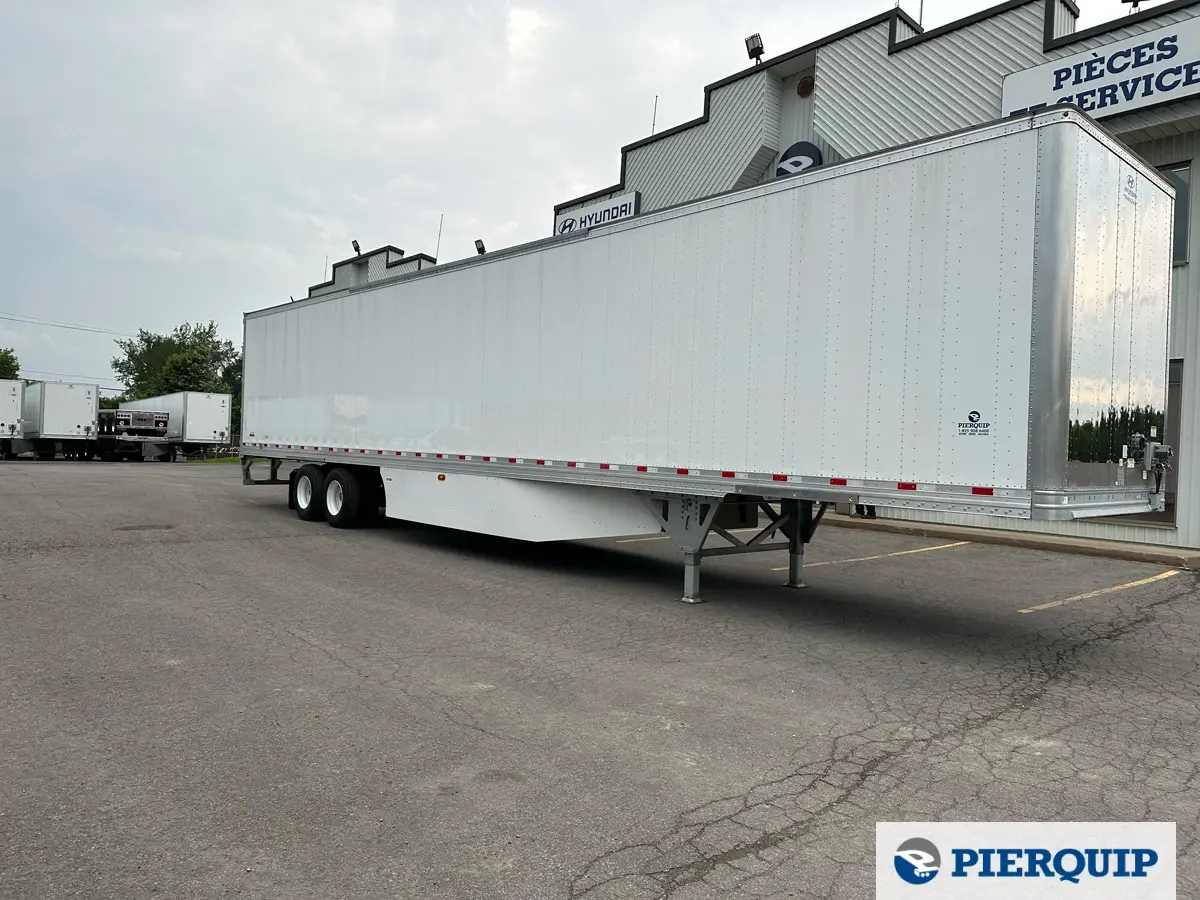

Dry Van HY-Cube Sheet and Post 53′ 2 Axles with barn doors, with skirt, rub rails. Galvanized features: crossmembers, bumper, approach plate and landing gear.

Information Request

2026 HYUNDAI Dry Van HY-Cube (Sheet and posts) 53′ Tandem Swing Doors

Model: HHYSP

Year 2026
Number of Axles 2
Length 53'
Availability Coming soon
Condition New

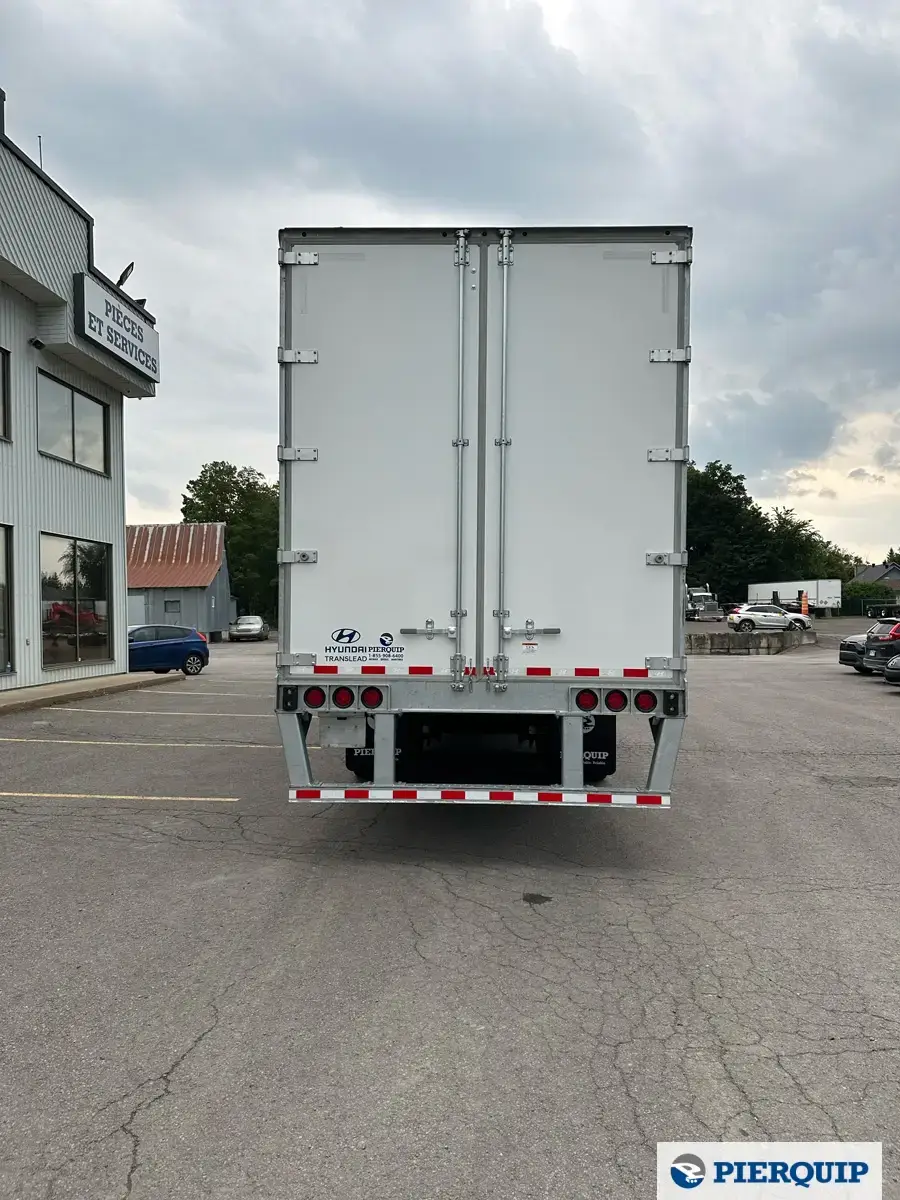

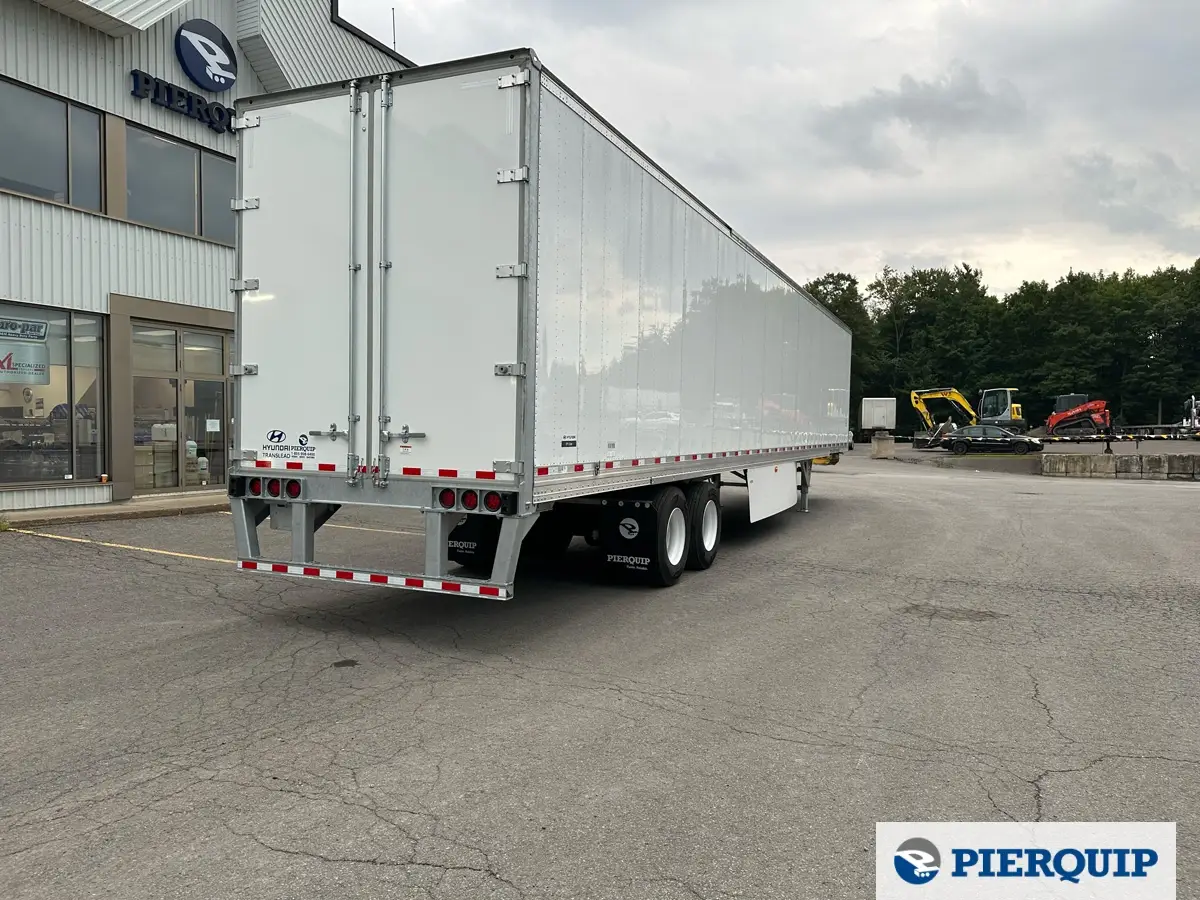

Rear DoorsSwing doors (barn doors)
Upper Plate1/4'' Galvanized
Scuff12" DymondPly
Landing gearJost HT451, Galvanized
GVWR (Load Capacity)68 000 lbs
Axles TypeSliding Tandem Axle Bogie
Width102"
Inside Length52' 6''
Inside Width101''
Inside Height110''
Crossmembers Spread8'' over landing gear and running gear, 12'' in bay area and from upper coupler to landing gear
Fifth Wheel Height47"
King Pin distance36"
SuspensionHendrikson Vantraxx HKANT40K Air Ride
Tires11R22.5 General HT+
WheelSteel
Tire Inflation SystemN/A
BearingParallel Spindle (same inner and outer)
ABS2S1M ABS System
MudflapOn Suspension Frame
Aero Dynamic SkirtTranstex Edge E-1930T
Suspension dumpManual Dump Valve
Roof0,040'' Aluminium
Roof BowGalvanized steel anti-snag 24" center full length
Front Wall (exterior)0,05'' Aluminum prepainted white
Rub RailOne Aluminum Rub Rail on each side
Door HoldbackLash type with chains
Door Hinge5 per door
Fruit Door (vent Door)N/A
Rear BumperBolted Galvanized Bumper
Treshold plate0,13"x28" Glavanized Steel Diamond Plate
Side Wall0,05'' Aluminum prepaint white
Front Scuff0,13" x 12" High Primed Flat Steel
Load scaleYes
ElectricityPhillips Harness
Light SideN/A
Light Back3 - 3 Trucklite LED with grommet
Document HolderPhillips 16-802
ColorWhite

Financing

From $800 / month*

Payment based on 8% rate over 72 months, with 10% down payment. Payment for budget estimation purposes only. Subject to credit approval. Rates and conditions subject to change without notice.

View all information about Hyundai Translead

Lightweight, Durable Design

Hyundai Translead is revolutionizing road transport with ingenious composite or galvanized steel builds that combine lightness and strength for quick and efficient repairs. These trailers are built to last, with side panels that can be replaced individually, reducing downtime and optimizing use.

Innovation in Details

Every Hyundai Translead semi-trailer is the result of a constant search for excellence. With optimized payload capacities, as in the HY-Cube model, and advanced thermal characteristics for ThermoTech refrigerated trailers, Hyundai Translead is defining the future of logistics.

Corrosion-Resistant Galvanized Materials

Durability is at the heart of the design of Hyundai Translead semi-trailers. Thanks to carefully selected materials for their corrosion resistance, including the extensive use of galvanized steel, Hyundai Translead trailers withstand the elements and rigours of road transport.
