Description

AVAILABLE ON ORDER: Combo steel and aluminum Flatbed 53′ 3 axles. Corsol paint is used on every steel parts in order to prevent rust from forming. The life of your trailer will be extended and resale value will be higher.

Information Request

Call us

Form

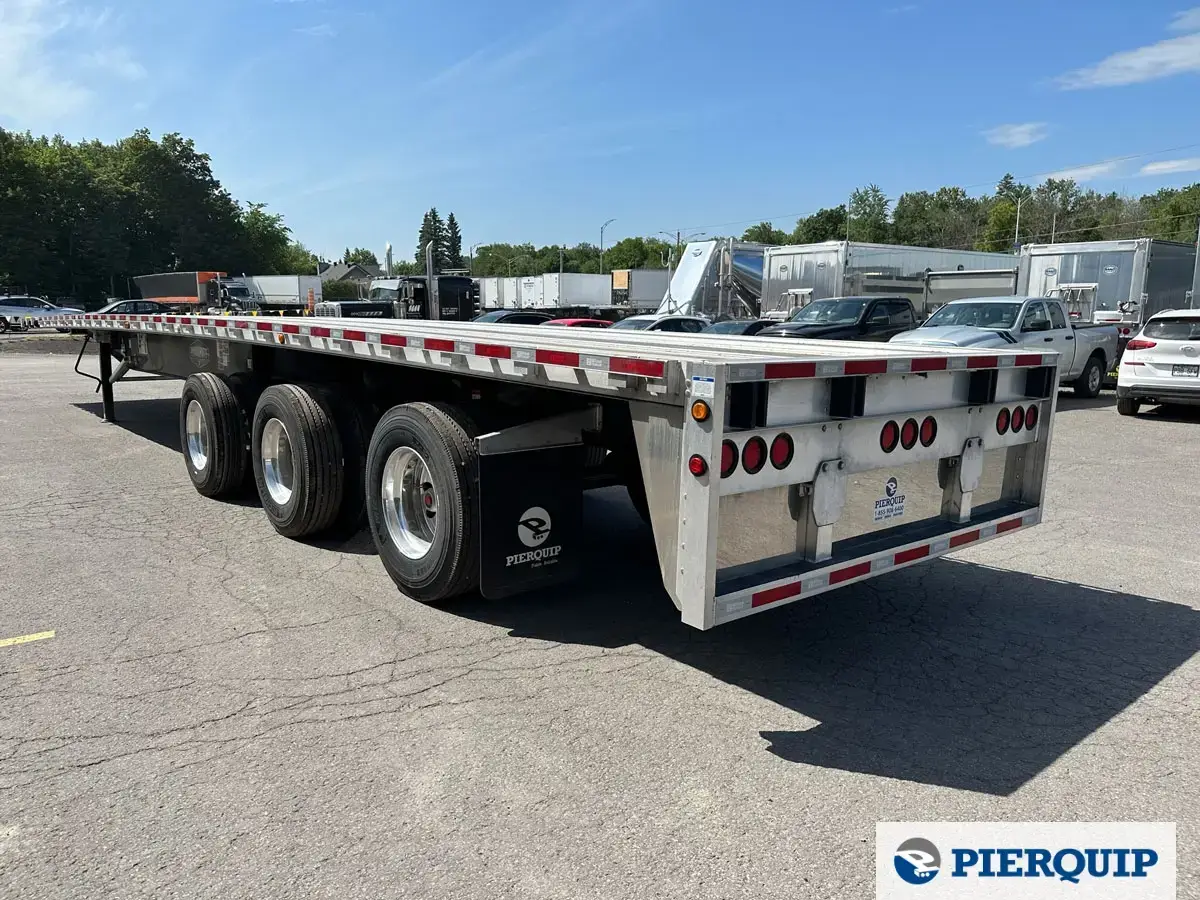

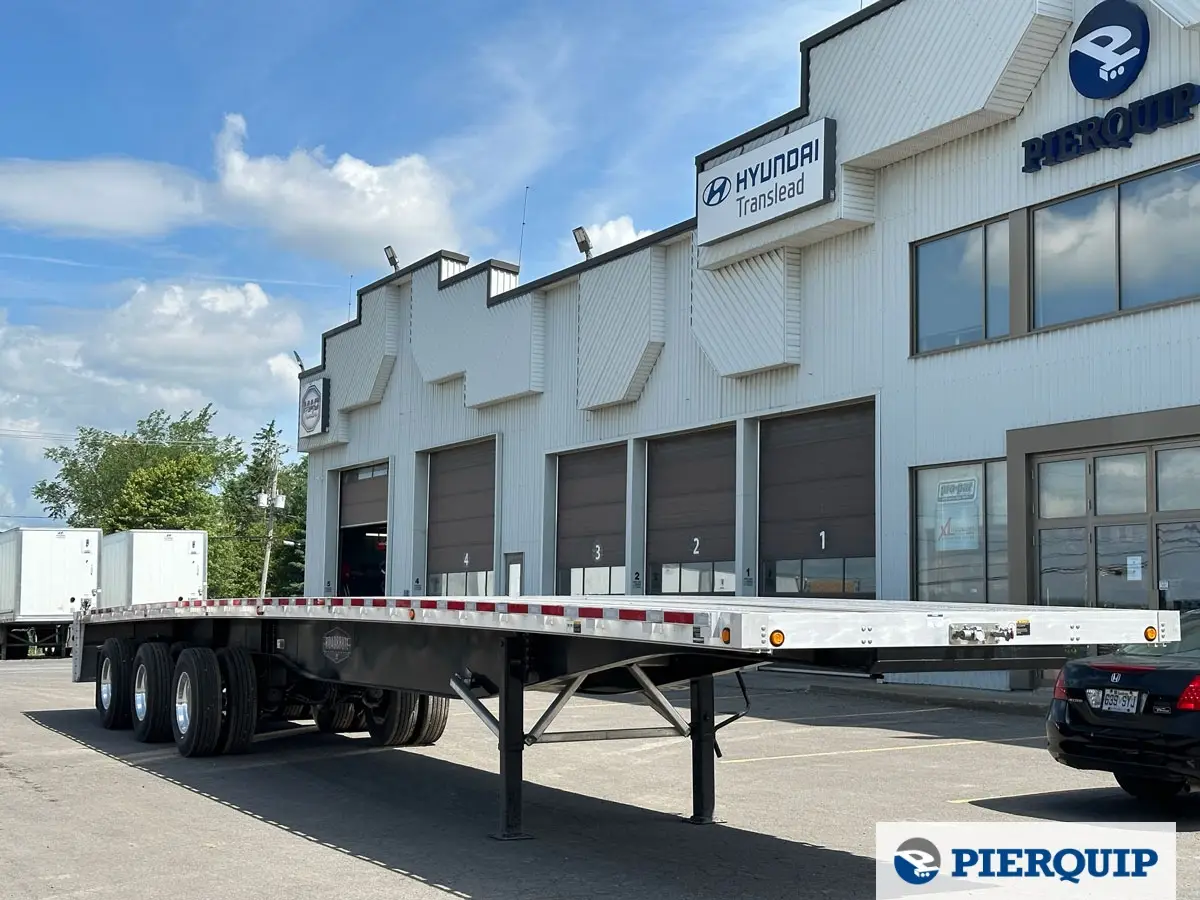

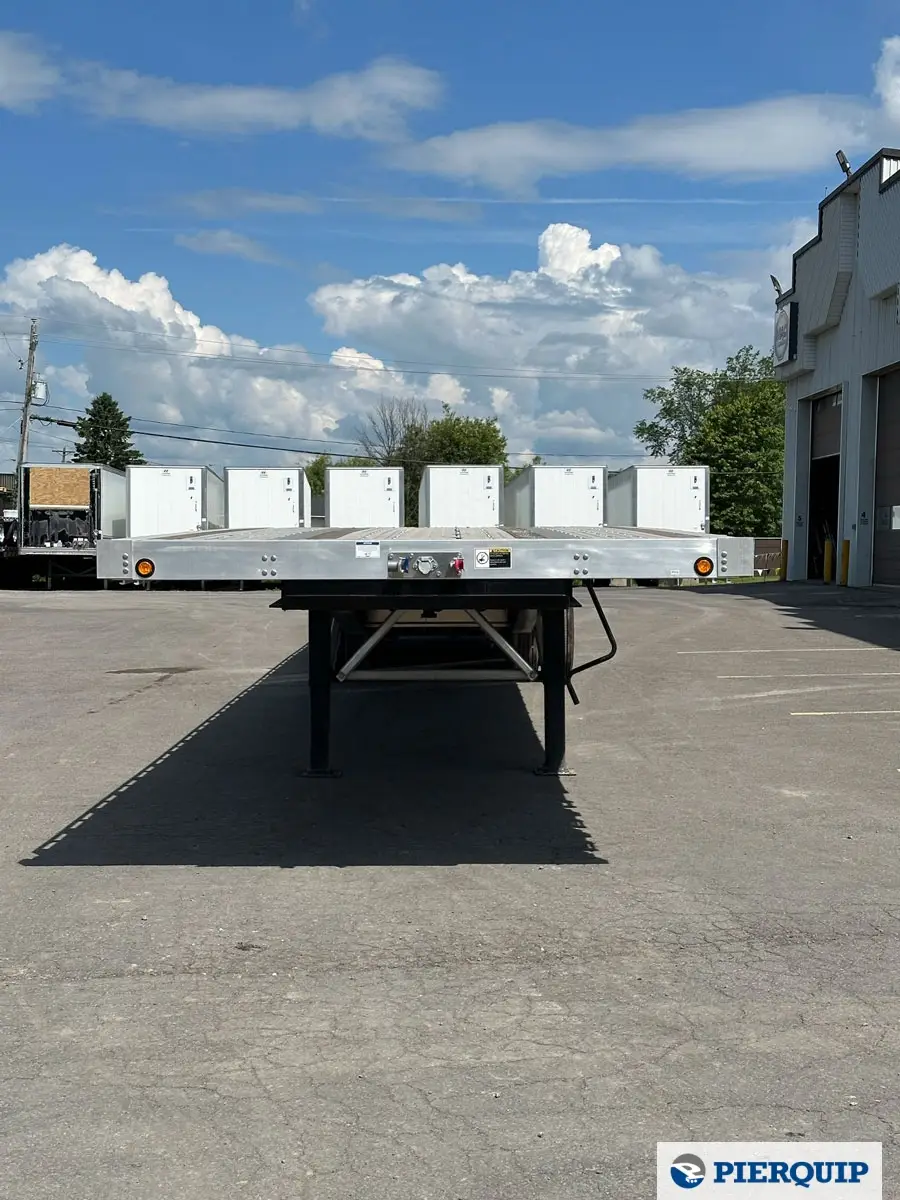

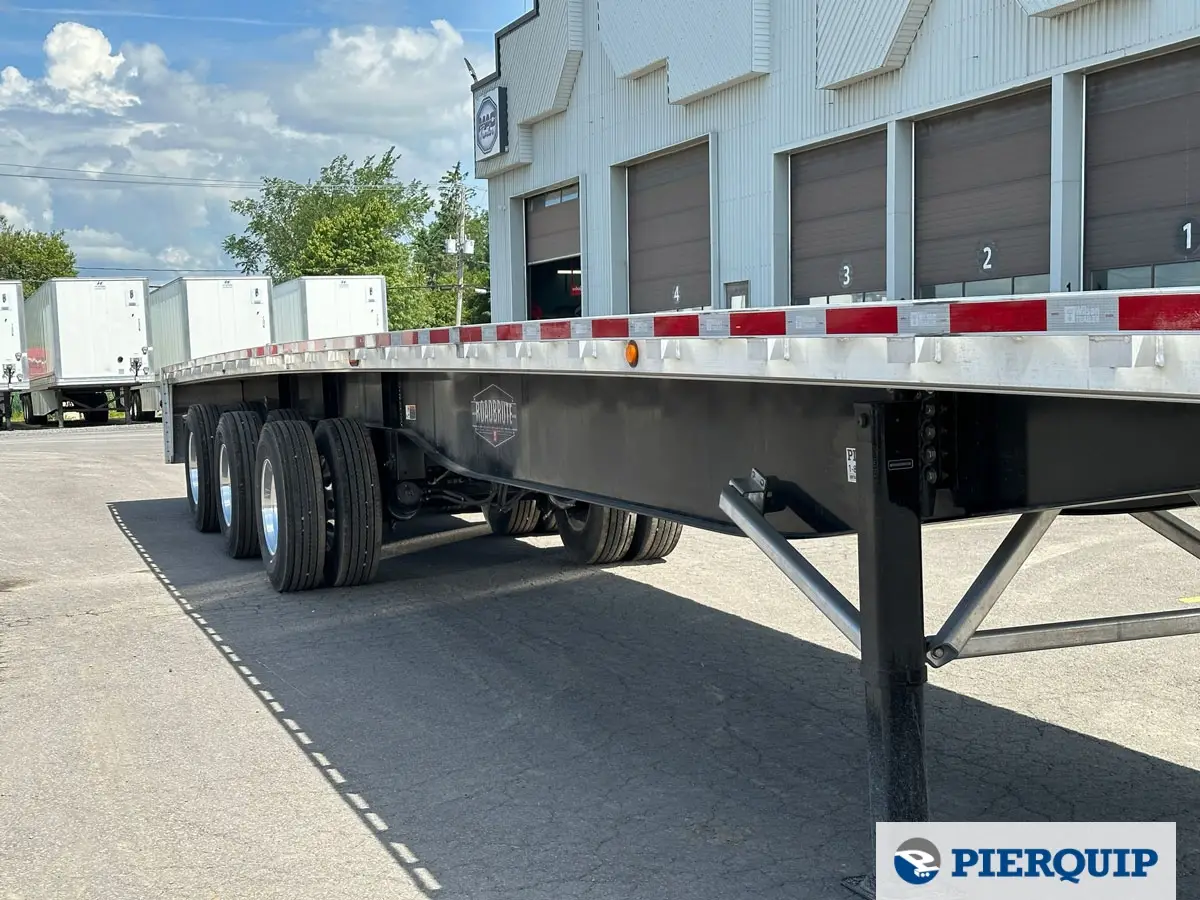

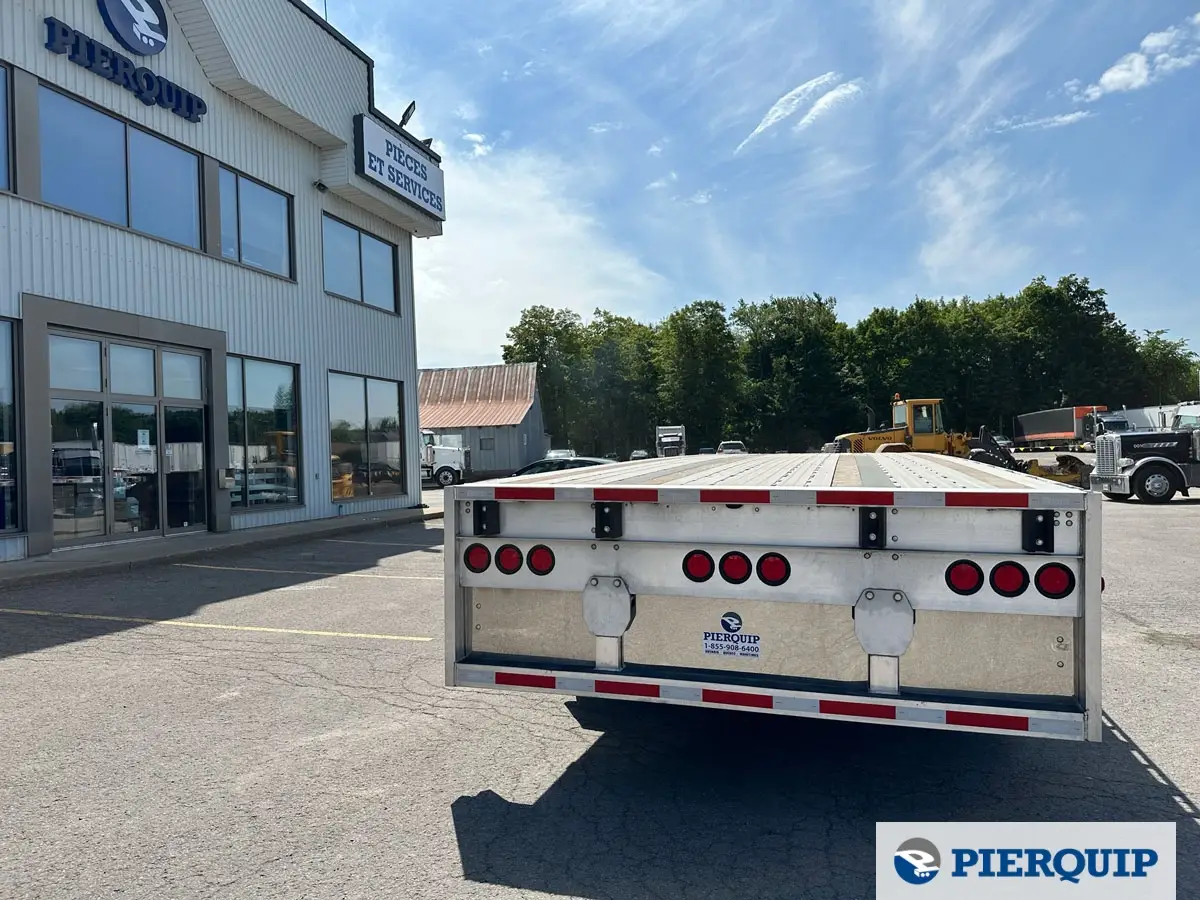

2026 WILSON Combo Flatbed Tridem 53′

Model: CF1090533

Stock number: R6634893

Year 2026
Number of Axles 3
Length 53'
Availability On order
Condition New

CompositionCombo Aluminum Steel
Suspension HangersBlack Coat Corsol
Upper Plate1/4''
Light Back3 Large - 3 Large - 3 Large

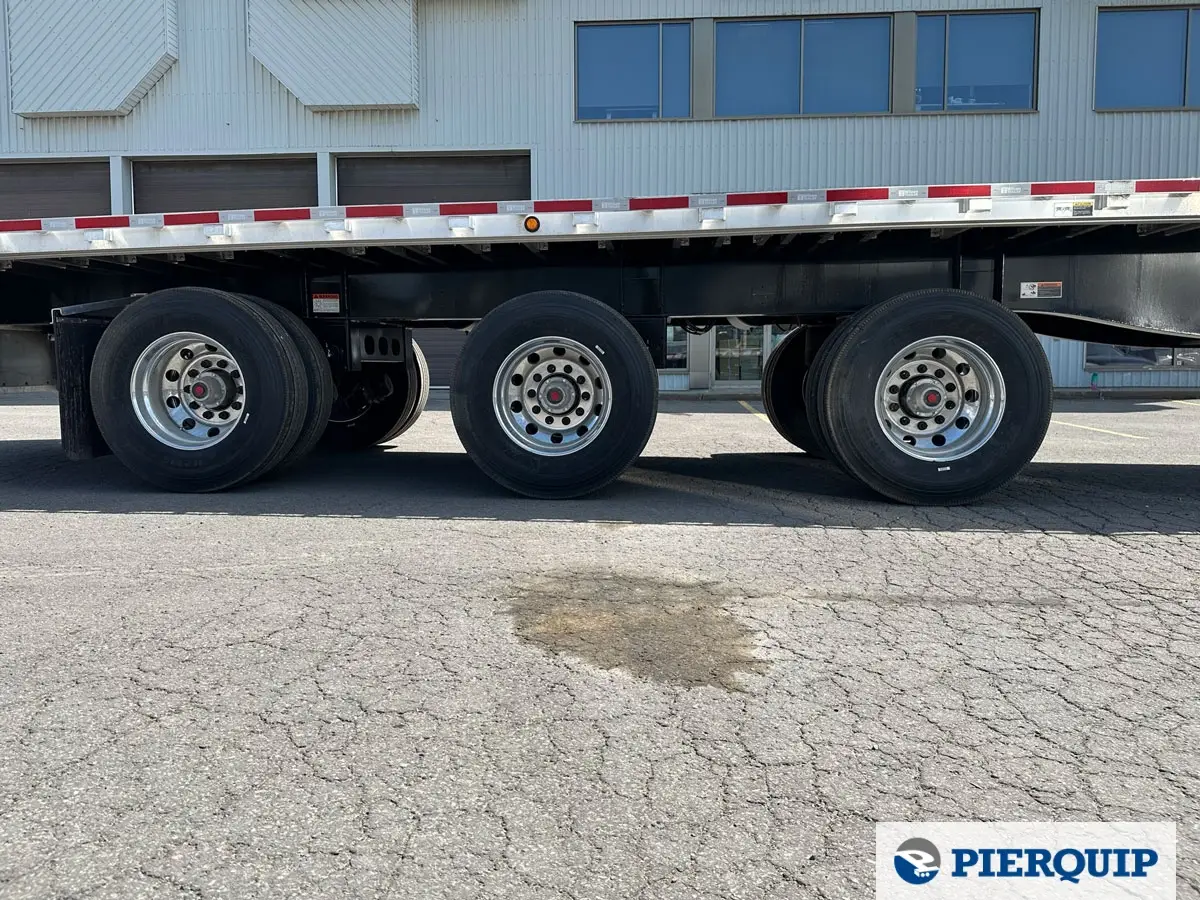

Suspension primaryTriaxle Intraax AA-250 Air Ride
Primary TiresMichelin XZE2 11R22.5 LR-G
Suspension SteerN/A
Steer TiresN/A
Wheel Aluminum Alcoa Ultra One
Tire Inflation SystemN/A
ABSMeritor Wabco (PLC) 4S/2M
MudflapRear of rear axle
BearingSame Inner and Outer
Axles Spread72"
Side Rail (spools pocket)Single Spool W/ Pockets on 24''
Winch TrackBoth Sides
Landing gearJOST H450 Magnum Heavy Duty Landing Gear W/ Cushion Foot (10 YR Warranty/ Maint. Free)
Suspension DumpManual Suspension Dump
Fifth Wheel Height47"
King Pin distance30''
Crossmembers Spread15'' On Center
Frame rail29'' Beam (54K In 4FT)
Width102''
Rear RampsN/A
Front RampsN/A
Floor TypeAluminum With 2 Nailers on Outside
Floor AnchoringN/A
ElectricityGrote L.E.D. W/ Grommet
Extendable LightsN/A
Light Side5 Each Side
Strobe LightN/A
Load scaleYes
Tool BoxesOption Available at Pierquip
Dunnage RackOption Available at Pierquip
ColorCombo Black Steel Corsol Paint And Aluminum
Document HolderTube Type

Financing

From $800 / month*

Payment based on 8% rate over 72 months, with 10% down payment. Payment for budget estimation purposes only. Subject to credit approval. Rates and conditions subject to change without notice.

View all information about Wilson Trailer

Lightweight, High-Performance Design

Known for their robust construction, Wilson trailers use top quality materials for unparalleled durability. For example,

The Grote Ultra Blue Sealed wiring system and its seven-year warranty.
The one-piece structure is crafted using 130,000 PSI flange material and high-strength web material. It features automatic welding, both inside and out, along the top and bottom, ensuring exceptional strength you can rely on.

This build quality positions Wilson as a market leader, offering dependable and durable solutions for all transportation needs.

Corsol: Anti-Corrosion Solution

Each steel part of Wilson trailers is treated with a specially formulated Corsol paint to prevent rust formation. Thanks to this advanced technology, the life of your trailer is significantly extended and its resale value is increased, ensuring a reliable and sustainable investment.

Durability and Quality

Known for their robust construction, Wilson trailers use top quality materials for unparalleled durability. Designed to withstand the challenges of long journeys and difficult conditions, they stand out for their resistance to corrosion and their ability to maintain high performance over a long period of time. This build quality positions Wilson as a market leader, offering reliable and sustainable solutions for all transportation needs.
